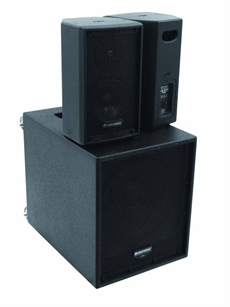

OMNITRONIC AS-470 Active system

Active complete system, 470 W RMS

• Two-way satellite system consisting of two tops and one subwoofer
• Perfectly tuned system for demanding home users, DJ home recording, party etc.
• Easy transportation via 4 wheels
• Easy-to-use complete system with amplifiers, limiter and crossover
• Many protection circuits for optimized equipment protection: opto limiter and subsonic filter for protection from extremely low frequencies
• Rugged full-range top speaker in a stable wooden housing
• Tops with passive 2-way crossover
• Powerful, dry bass via voluminous housing with bass-reflex system
• Balanced frequency range with high sound pressure
• Very high durability
• Speaker connection via lockable Speaker jacks
• Housing made of 15 mm (top) or 18 mm (sub) wood
• Scratch-resistant lacquer surface
• Impact-resistant steel grille
• With flange for speaker stand installation etc.
• Bass flange with M20 thread for safe installation
• Tops can be used lying, standing, on the subwoofer, on a speaker stand or stand or suspended
• Subwoofer can be used lying or standing
• Compact speaker system for car transport
• Ideal as PA system for mobile use
• Speaker stands, connection cables and transportation bag must be ordered separately

Top:
Rated power:   60 W RMS
Program power:   80 W
Components:   16.5 cm woofer (6.5"), dome tweeter
Connections:    1 Speaker socket
Sensitivity (1 W/m):   90 dB
Max. SPL (1 m):   107 dB
Impedance:   4 ohms
Frequency range:   150 Hz - 18 kHz
Dispersion angle (1 kHz):   60° x 60°
Crossover frequency:   3.5 KHz
Dimensions (H x W x D):   350 x 210 x 220 mm
Weight:   5 kg
Subwoofer:
Rated power:   350 W RMS
Components:   30 cm woofer (12")
Inputs:   2 x XLR (line), 2 x RCA (aux), 1 x Mic (XLR/6.3 mm jack)
Outputs:   2 x Speaker
Mixed output:   2 x RCA
Sensitivity (1 W/m):   96 dB
Max. SPL (1 m):   122 dB
Impedance:   4 ohms
Frequency range:   30 - 250 Hz
Dimensions (H x W x D):   450 x 380 x 528 mm
Weight:   31 kg
Amplifier:
Power supply:   115/230 V AC, 50/60 Hz ~
Power consumption (max.):   700 W
Total power output:   470 W RMS
Nominal power output satellite:   2 x 60 W RMS
Nominal power output subwoofer:   350 W RMS
Min. input sensitivity:   0.775 V
LED indicators:   Power, Protect, Clip
Protection circuits:   Short-circuit, DC voltage, thermal protection circuit, soft start, opto-limiter and subsonic filter
Active crossover:
Crossover frequency:   200 Hz
