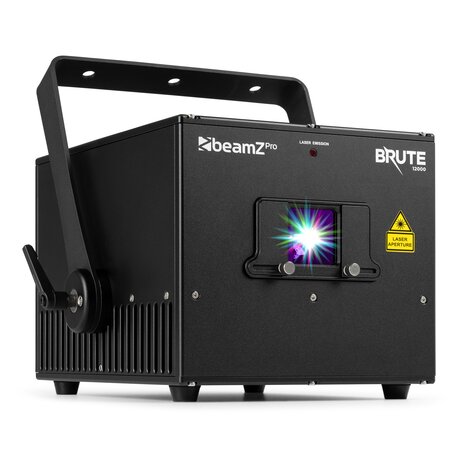

BeamZPRO Brute 12000 Pure Diode Laser Outdoor
Brute 12000 is an outdoor RGB diode laser in the 12W class. Its specification table lists a guaranteed and maximum output of 12,100 mW. Analogue RGB modulation and 35 kpps scanners at 8° support continuous colour fading and precise graphical projection.
External control is available through ILDA and 5-pin DMX. The product description also identifies automatic and sound-activated standalone operation. An IP65 aluminium enclosure, interlock connections, Scan Fail Safety and a temperature-controlled low-noise fan support mobile productions, fixed installations, multimedia and long-distance outdoor applications. Image size and X/Y inversion can be adjusted.
Highlights
- Full-colour semiconductor diode laser with IP65 enclosure
- Laser sources: red 2,800 mW, green 2,800 mW, blue 6,500 mW
- 12W class; specification table lists 12,100 mW guaranteed output
- Dust-protected aluminium housing
- LCD display
- Emergency-stop interlock input/output over EtherCON
- Scan Fail Safety system
- Optical scanners: 35 kpps at 8°
- Maximum scanning angle: 50°
- Low-noise temperature-controlled fan
- 5-pin DMX input/output
- ILDA input/output
- Automatic operating mode
- Image-size adjustment and X/Y inversion
- Analogue RGB modulation
- TR1 power input/output
Specifications
General
- Brand: beamZ Professional
- Product series: Brute series
- Model: Brute 12000
- Manufacturer item number: 152.576
- Colour: Black
Light source
- Laser red: 2,800 mW @ 638 nm
- Laser green: 2,800 mW @ 525 nm
- Laser blue: 6,500 mW @ 455 nm
- Laser guaranteed output: 12,100 mW
- Laser maximum output: 12,100 mW
Optics
- Laser scanner system: 35 kpps @ 8°
- Maximum laser scan angle: 50°
Movement
- X/Y adjustment: Image size and axis inversion
Features
- Colour modulation: Analogue RGB
Control
- DMX channels: 10 or 34
- RDM: No
Input connections
- Power: 1x TR1 IP65, type A
- DMX: 1x 5-pin XLR, male
- ILDA: 1x DB25, male
- Interlock: 1x RJ45 / EtherCON
Output connections
- Power: 1x TR1 IP65, type B
- DMX: 1x 5-pin XLR, female
- ILDA: 1x DB25, female
- Interlock: 1x RJ45 / EtherCON
Hardware features
- Cooling: Temperature controlled fan
- Display type: LCD
- Scanner safety: Scan Fail Safety
Environmental
Electrical
- Power supply: 100–240 V AC, 50/60 Hz
Mechanical
- Dimensions without bracket (W x D x H): 205 x 285 x 186 mm
- Net weight without bracket: 8.7 kg
