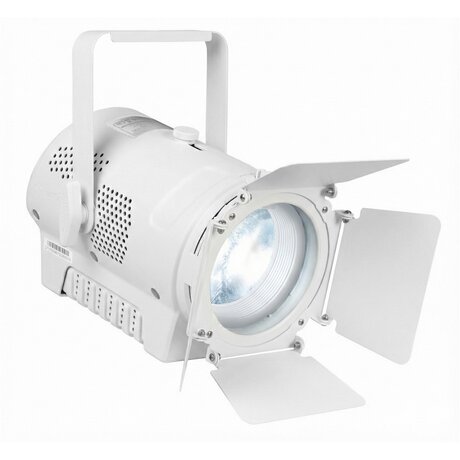

BeamZPRO BTK050Z-3 WH Mini Fresnel Zoom 2x 50W LED WW/CW
BTK050Z-3 WH is a compact white Fresnel using a 50W warm-white COB LED and a 50W cool-white COB LED. The combined sources offer 2,700–6,500 K white light. Manual 10°–60° zoom adjusts the fixture between a focused highlight and a broader wash.
CRI ≥92, TLCI 98 at 3,200 K and TLCI 96 at 5,600 K support theatre and camera applications. Flicker-free 16-bit DMX dimming, an OLED panel and quiet convection cooling suit studios and live performances. The manufacturer positions it as an alternative to 300–500W halogen fixtures. A barndoor and mounting bracket are supplied.
Highlights
- 50W cool-white COB LED plus 50W warm-white COB LED
- White-light adjustment: 2,700–6,500 K
- Manufacturer-listed alternative to 300–500W halogen fixtures
- Manual zoom: 10°–60°
- Compact white fixture body
- Fresnel optical system
- CRI ≥92; TLCI 98 at 3,200 K and 96 at 5,600 K
- 16-bit dimming over DMX
- Flicker-free light output
- OLED control panel
- 3-pin DMX and manual control
- Quiet temperature management with convection cooling
- P-Con power connection
- Barndoor and mounting bracket included
Specifications
General
- Brand: beamZ Professional
- Product series: BTK series
- Model: BTK050Z-3 WH
- Manufacturer item number: 155.093
- Finish: White housing
Light source
- Light source: 1x 50W WW COB LED + 1x 50W CW COB LED
- Colour temperature: 2,700–6,500 K
- Colour rendering: CRI ≥92
- Illuminance: 18,668 lx @ 1 m
- TLCI: 98 @ 3,200 K; 96 @ 5,600 K
Optics
Features
- Dimming: 16-bit, flicker-free
- Flash per second: 1–13 Hz
Control
- DMX channels: 2 or 3
- Control modes: Auto programmes, DMX, Manual
Input connections
- Power: 1x P-Con, type A
- DMX: 1x 3-pin XLR, male
Output connections
- Power: 1x P-Con, type B
- DMX: 1x 3-pin XLR, female
Hardware features
- Cooling: Convection
- Display type: OLED
Environmental
Mechanical
- Dimensions (W x D x H): 230 x 175 x 250 mm
- Net weight: 2.5 kg
Included accessories
