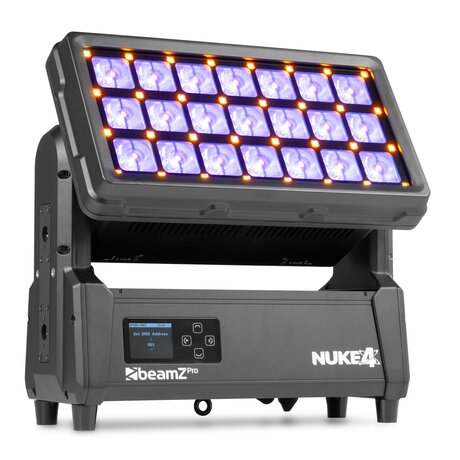

BeamZPRO NUKE4 Motorized Beam Outdoor
NUKE4 is a motorized outdoor strobe and beam fixture for festivals, touring productions and architectural lighting. Its two LED plates create distinct layers: the upper plate produces strobe and pixel effects, while the lower plate delivers high-output beams and colour washes.
Motorized 180° tilt adds sweeping movement to programmed effects. Pixel mapping, adjustable effect speed and selectable dimmer curves provide detailed control. DMX, RDM, Art-Net and sACN support integration into professional lighting systems. An IP65 enclosure, temperature-controlled fan and lockable LCD panel complete the design.
Highlights
- Hybrid strobe/beam fixture with motorized tilt
- 180° tilt range with 16-bit control
- Upper plate: 21x 1W RGBA LEDs and 32x 3W RGBA LEDs
- Lower plate: 21x 40W RGBW LEDs
- Individually controllable pixel effects
- DMX512, Art-Net, sACN and standalone operation
- 40-, 334- or 482-channel DMX modes
- RDM capability
- Built-in automatic programmes and shows
- Adjustable effect speed
- LCD control panel with key lock
- Master/slave synchronization
- IP65 weatherproof enclosure
- Selectable dimmer curves
- TR1 power connection
- Omega mounting bracket included
Specifications
General
- Brand: beamZ Professional
- Product series: NUKE series
- Model: NUKE4
- Manufacturer item number: 153.341
- Colour: Black
- Fixture type: Motorized beam/strobe fixture
Light source
- Light source: Top plate: 21x 1W RGBA + 32x 3W RGBA
- Light source: Bottom plate: 21x 40W RGBW
- Illuminance: 137,393 lx @ 1 m
Optics
- Beam angle: Top / bottom plate: 17° / 65°
- Zoom: No
Movement
- Tilt movement: 180° (16-bit)
Features
- Flash per second: 1–20 Hz
- Dimmer curves: Selectable
- Effect speed: Adjustable
Control
- DMX channels: 40, 334 or 482
- Control modes: Auto programmes, DMX, Manual, Art-Net, sACN
- RDM: Yes
Input connections
- Power: 1x TR1 IP65, type A
- DMX: 1x 3-pin XLR IP65, male
- DMX: 1x 5-pin XLR IP65, male
- Data: 1x RJ45 IP65
Output connections
- DMX: 1x 3-pin XLR IP65, female
- DMX: 1x 5-pin XLR IP65, female
- Data: 1x RJ45 IP65
Hardware features
- Cooling: Temperature controlled fan
- Display type: LCD with key lock
Environmental
Electrical
- Power supply: 100–240 V AC, 50/60 Hz
Mechanical
- Dimensions (W x D x H): 425 x 230 x 390 mm
- Net weight: 20.65 kg
