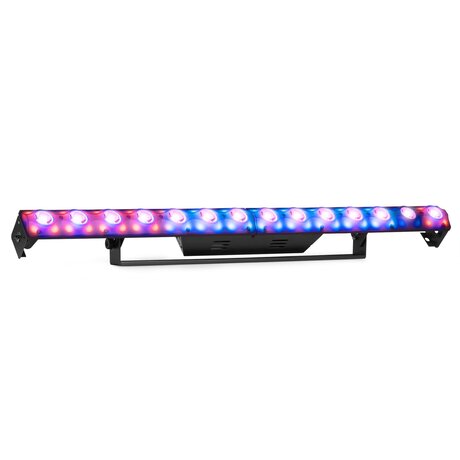

The LCB14C is a hybrid LED bar equipped with 14x 4W RGBW LEDs and 56x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode, there are pre-programmed shows that you can run automatically or sound activated. It's also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket.
14x 4W RGB LEDs for sharp 5° beams
56x SMD RGB LEDs (backlight)
Single pixel control
Built-in programs
Silent operation
Multifunctional bracket (floor and truss mounting)
Electronic dimming: 0 - 100%
Power Connector input/output
Brand beamZ
Product colour Black
Light source 3-in-1 LED, 4-in-1 LED
Colours Red, Green, Blue, White
LED power 4W
Quantity of LEDs 14
LED power: Backlight SMD
Quantity of backlight LEDs 56
Beam angle 5°
Field angle 10°
Illuminance 8.294 lx @ 1m
Flash rate per second 1 - 30Hz
Modes Automatic programs, DMX
Sound to light mode Yes
DMX channels 8, 11, 32, 98
DMX connection 3-pin XLR
Daisy chain Yes (max. 6 bars)
IP rating IP20
Cooling Fan
Display LED
Power plug P-Con
Power consumption 1.310 - 0.637A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1000 x 70 x 120mm
Weight (kg) 2.8
Included accessories Mounting bracket, Power cable
