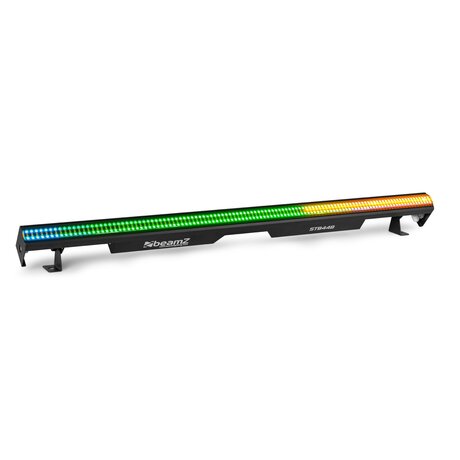

The STB448 Strobe Bar is a sleek LED fixture with a total of 448 SMD LEDs, which guarantee a dazzling light output. The Bar is divided into four sections: the upper and lower sections contain 192 RGB LEDs, while the two middle sections are equipped with 112 white and 112 amber SMD LEDs. These LEDs are arranged in 4 rows of 16 independently controllable segments, each with 7 LEDs. In DMX mode, the top and bottom sections can be set to their own RGB colours. For stand-alone operation, the STB448 offers pre-programmed shows that can run automatically or be sound-activated. Furthermore, the PowerConnector in/out and the quick lock coupling system allow you to easily connect multiple units to a single power outlet.
Strobe LED Bar RGBAW
224x SMD RGB LEDs (sections top and bottom)
112x SMD White LEDs and 112x Amber LEDs (sections centre)
4x 16 Sections controllable
36 Auto programs for the White & Amber sections
68 Auto programs for the RGB sections
DMX and Stand-alone mode
Master/slave function
3 Sound modes with adjustable sensitivity
DMX in/output via 3-pin XLR
P-Con Powerconnector input/output
Control panel with LCD display
Linkable with the quick lock coupling system
Brand beamZ
Product colour Black
Light source Single colour LED, 3-in-1 LED
Colours Red, Green, Blue, Amber, White
LED power 0.5W
Quantity of LEDs 224x RGB
LED power: Strobe 2x 112 White/Amber
Beam angle 70°
Illuminance 5.486 lx @ 1m
Flash rate per second 1 - 23Hz
Modes Automatic programs, DMX, Master/Slave
Sound to light mode Yes
RDM Yes
DMX channels 7, 13, 82, 130, 135
DMX connection 3-pin XLR
IP rating IP20
Cooling Convection
Display LCD
Power plug P-Con
Power consumption 2.18 - 0.979A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1000 x 55 x 100mm
Weight (kg) 2.15
Included accessories Mounting bracket, Power cable
