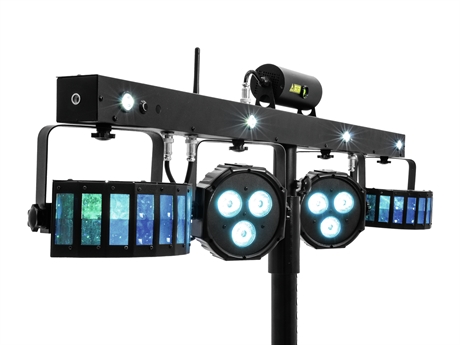

Bar with 2 derbies, 2 spots, white strobe LEDs, laser (RG, 2M), foot switch
- Crossbar with integrated DMX control unit and stand sleeve
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects
- For application areas such as: Wedding/gala/events; mobile use
- When fog is used, this effect becomes especially attractive
- 37 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function
- With Mounting bracket
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- Laser; multi beam effect; Strobe effect; flower effect
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 3 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
2 spots separate controlling - With a beam angle of 13°
light effect
- 3 powerful LEDs 1 W high-power R/G/B
2 spots separate controlling
bar
- 4 powerful LEDs 1 W high-power cold white (CW)
LEDs separate controlling
Package contents
- 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x foot control, 1 x remote control, 2 x battery, 2 x mounting bracket, 2 x knurled screw, 1 x bag, 2 x washer
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
50 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
1 x IEC connector (F) mounting version
Device fuse:
5 x 20 mm, F 1 A Fuse replaceable
Lamp type:
LED lamp
Flash rate:
0 - 30 Hz
DMX channels:
3; 5; 9; 27
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch; Master/slave function
Preprogrammed in:
Light´J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Housing color:
Black
Attachment system:
2x Mounting bracket
Dimensions:
Width: 1,09 m
Depth: 14,5 cm
Height: 37 cm
Weight:
9,05 kg
Noise classification:
Class 2 (slight noise)
Laser
Laser class:
2M
Laser color:
R/G
Laser module:
Red (R) 100 mW 650nm
Green (G) 30 mW 532nm
Spotlight
LED:
3 x 3 W high-power 3in1 TCL RGB (homogenous color mix)
Beam angle:
13°
Beam angle (1/2 peak):
13°
Beam angle (1/10 peak):
20°
Light effect
LED:
3 x 1 W high-power R/G/B
Bar
LED:
4 x 1 W high-power cold white (CW)
Beam angle (1/2 peak):
7°
Foot control
Battery:
1 x 9.0 V E block 6LR61 alkaline manganese included
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
