5-channel wireless LED controller with remote control for RGB and dual white
- User-friendly LED controller with 4 zones (5 x 4A) and remote control
- Controls single- and multi-colored (CW+WW, RGB, RGBW) LED strips (12-24 V) as desired
- Innovative wireless technology allows multiple controllers to be controlled synchronously and asynchronously with just one remote control
- Synchronous color sequences even over several hours with multiple controllers and different LED types
- Excellent signal transmission with 2.4 GHz - no perceptible difference to a wired system
- All controllers communicate with each other and cover a large range
- No visible contact between remote control and controller required
- Any number of controllers possible in 4 zones
- Color selection via touch-sensitive color wheel
- Memory function saves last setting when switching off
- 9 integrated show programs
- Program speed adjustable; Dimmer electronic
Remote control
- Control via Wireless remote control
- Operating range up to 20m
Package contents

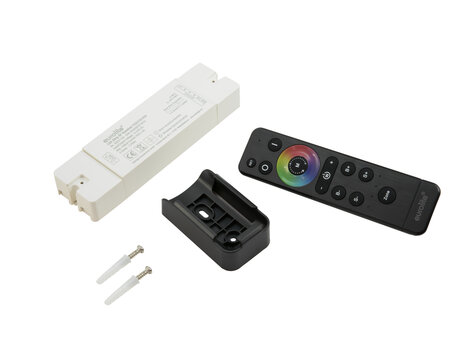

- 1 x controller, 1 x remote control, 1 x user manual, 2 x battery, 1 x declaration of conformity, 1 x holder, 4 x screw
Controller
Power supply:
12/24V DC
Power consumption:
Max. 480 W 24 V DC
Max. 240 W 12 V DC
96 W 24 V DC per channal
48 W 12 V DC per channal
Output current:
Max. 4 x 5 A per channal
Power connection:
Via screw terminal
Power output:
Screw terminal
Carrier frequency:
2,4 GHz
Dimensions:
Length: 16 cm
Width: 4,6 cm
Height: 2,5 cm
Weight:
100 g
Remote control
Battery:
2 x 1.5 V AAA Micro LR03 alkaline manganese included
Control:
Wireless remote control
Range:
Range up to 20m
Dimensions:
Length: 14,8 cm
Width: 4 cm
Height: 1,9 cm
Weight:
70 g
