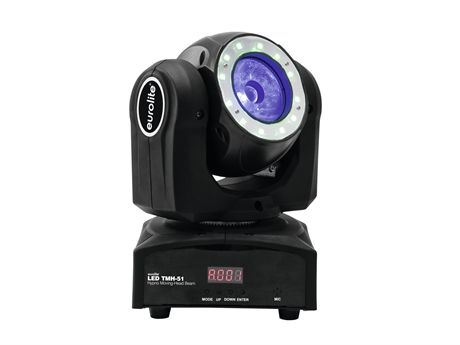

Mini beam with 40 W COB LED, RGBW color mixing and hypno ring in 4 segments
- Compact lightweight
- 12 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
segments separate controlling - 1 powerful LED 40 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
- Positioning within 510° PAN and 210° TILT
- Exact positioning (16 bit resolution)
- Dimmer electronic; color blend stepless; color change adjustable; colors preset
- Beam effect; Strobe effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via DMX; stand-alone; Sound to light via Microphone
- Flicker-free
- With a beam angle of 8°
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Package contents
- 1 x moving light, 1 x omega bracket, 1 x user manual, 1 x power cord, 2 x screw, 2 x washer
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
45 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Fuse:
5 x 20 mm, F 2 A Fuse replaceable
Lamp type:
LED lamp
LED:
12 x SMD 5050 3in1 TCL RGB (homogenous color mix)
1 x 40 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:
210° Exact positioning (16 bit resolution)
Max. PAN movement:
510° Exact positioning (16 bit resolution)
Flash rate:
0 - 20 Hz
DMX channels:
16; 21; 23
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
DMX; stand-alone; Sound to light via Microphone
Preprogrammed in:
Light´J; LED PC-Control 512; Light Captain
Beam angle:
8°
Beam angle (1/2 peak):
8°
Housing color:
Black
Dimensions:
Width: 17 cm
Depth: 16 cm
Height: 24,5 cm
Weight:
2,82 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
