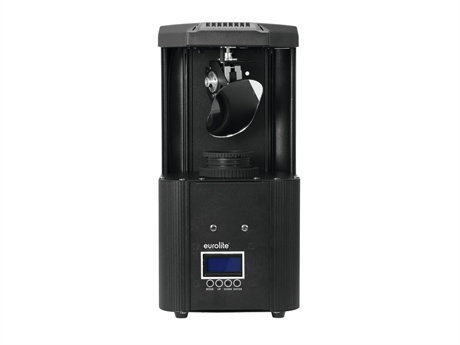

Handy scanner with 30 W LED, gobo and color wheel
- Compact design
- Fuzzy sound control: program continues automatically during periods without music or bass-beat
- 1 powerful LED 30 W COB (chip-on-board) cold white (CW)
- Positioning within PAN and TILT
- Gobo wheel with static gobos; Focus manual
- Gobo effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 7 gobos and open
shake effect - Integrated show programs
- The device is cooled by cooling fan
- Control via DMX; stand-alone; Sound to light via Microphone
- With a beam angle of 12°
- LCD display
- Dimmer electronic
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x mounting bracket, 2 x screw
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
50 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Lamp type:
LED lamp
LED:
1 x 30 W COB (chip-on-board) cold white (CW)
Flash rate:
0 - 18 Hz
Equipment:
Gobo wheel with static gobos; Focus manual
Color generation:
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with static gobos, 7 gobos and open
Shake effect
DMX channels:
9
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
DMX; stand-alone; Sound to light via Microphone
Preprogrammed in:
Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
12°
Beam angle (1/2 peak):
12°
Illuminance in Lux (lx):
Cold white (CW) 3m: 1212 lx, 6m: 309 lx
Housing color:
Black
Display type:
LCD display
Dimensions:
Width: 16,5 cm
Depth: 33 cm
Height: 19,5 cm
Weight:
2,88 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
