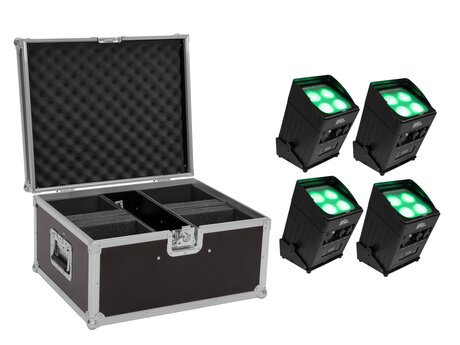

EUROLITE AKKU IP UP-4 Entry QCL Spot QuickDMX
IP65 battery-powered uplight with RGBW LEDs, QuickDMX and IR remote control
- Integrated QuickDMX transceiver for wireless DMX control
- Sturdy metal housing with handle and folding foot for angled placement
- Cordless, flexible and versatile
- Battery operation up to 12h depending on program used
- 4 powerful LEDs 8 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- Integrated show programs
- Direct color selection for 19 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; IR remote control; DMX; master/slave function; QuickDMX
- Preprogrammed in Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
- Flicker-free
- With a beam angle of 16°
- OLED display
- Rubber feet
- Suitable for outdoor use IP65
- For application areas such as: Architecture; decoration; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; rental; advertisement/Shop window
- Silent operation
- Application possibility: Standing
ROADINGER Flightcase 4x AKKU UP-4 Entry/IP UP-4 Entry
Trunk case, PRO version
- High-quality workmanship with birch multiplex 6 mm, dark brown
- Interior with foam padding
cover with foam padding - Aluminum profile frames 22mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 1 high-quality butterfly lock
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
4 x EUROLITE AKKU IP UP-4 Entry QCL Spot QuickDMX
- 1 x spotlight
- 1 x user manual
- 1 x power cord
- 1 x remote control
- 2 x battery
1 x ROADINGER Flightcase 4x AKKU UP-4 Entry/IP UP-4 Entry
| Weight: | 26.70 kg |
| EUROLITE AKKU IP UP-4 Entry QCL Spot QuickDMX |
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Battery/battery pack built-in
Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Battery pack type: | 1 x lithium ion 11.1 V, 4400 mAh, 48.84 Wh |
| Battery pack: | Battery operation up to 12h depending on program used
Recharging time 3h |
| Lamp type: | LED lamp |
| LED type: | 4 x 8 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: | 0.5 - 19 Hz |
| DMX channels: | 3; 4; 5; 6; 9 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; IR remote control; DMX; master/slave function; QuickDMX |
| Preprogrammed in: | Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief |
| Projection: | Flicker-free |
| PWM frequency: | 2900 Hz |
| Carrier frequency: | 2.4 GHz |
| Beam angle: | 16° |
| Beam angle (1/2 peak): | 16° |
| Beam angle (1/10 peak): | 32 |
| Housing color: | Black |
| Display type: | OLED display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 19.00 cm
Depth: 15.50 cm
Height: 23.25 cm |
| Weight: | 4.50 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 4x AKKU UP-4 Entry/IP UP-4 Entry |
| Maximum load: | 50 kg |
| Aluminum profile frames: | 22 mm |
| Case handle: | 2 pc/pcs |
| Stop hinge: | 2 pc/pcs |
| Lock: | Butterfly lock: 1 pc/pcs |
| Use of brands: | Branded hardware |
| Material: | Birch multiplex, 6 mm, laminated |
| Color: | Dark brown |
| Device compartment: | 18 cm x 18.5 cm x 23 cm |
| Accessory compartment: | 10 cm x 40 cm x 24 cm |
| Dimensions: | Width: 52 cm
Depth: 43 cm
Height: 30 cm |
| Weight: | 8.70 kg |
