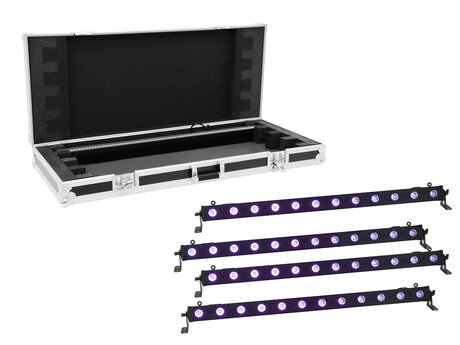

4x Light effect bar (1 m) with UV LEDs including flightcase
EUROLITE LED BAR-12 UV Bar
Light effect bar (1 m) with UV LEDs
- 12 powerful LEDs 1 W high-power ultra violet (UV)
- Dimmer electronic
- UV effect
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 14°
- With Mounting bracket
- 4 digit 7-segment LED display
- Silent operation
- Mains input and output for power linking up to 8 units
Package contents
- 1 x light effect, 1 x power cord, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual
ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB
Practical flightcase for 4 x LED BAR-252 RGB
- High-quality workmanship with birch multiplex 7 mm, black, laminated
- Interior with foam padding
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 3 chrome tip-over locks
- 2 high-quality butterfly locks
- For further information about this product, please refer to the Data Sheet under "Downloads"
Weight:
21,50 kg
EUROLITE LED BAR-12 UV Bar
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
25 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:
IEC connector (F) mounting version
Lamp type:
LED lamp
LED:
12 x 1 W high-power ultra violet (UV)
DMX channels:
1; 2
Cooling:
Passive convection cooling
Control:
DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Beam angle:
14°
Beam angle (1/2 peak):
14°
Beam angle (1/10 peak):
24°
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Length: 1,06 m
Depth: 8,5 cm
Height: 11,5 cm
Weight:
2,65 kg
Noise classification:
Class 0 (no noise at all)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 0,75 mm² H05VV-F
Cable length:
Approx. 1,1 m
Mounting bracket
Diameter mounting holes:
1 x Ø20mm; 1 x Ø11mm; 1 x Ø8mm; 2 x Ø7mm
Material:
Metal, 2 mm
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
ROADINGER Flightcase EC-B252 4x LED BAR-252 RGB
Maximum load:
25 kg
Aluminum profile frames:
30 mm
Carrying handle:
1 pc/pcs
Stop hinge:
3 pc/pcs
Lock:
Butterfly lock: 2 pc/pcs
Material:
Birch multiplex, 7 mm
Color:
Black, laminated; dark brown, laminated
Inside dimensions:
1,08 m x 44 cm x 7,5 cm
Device compartment:
1,08 m x 6,5 cm x 7,5 cm
Dimensions:
Width: 1,17 m
Depth: 48 cm
Height: 17 cm
Weight:
10,90 kg
