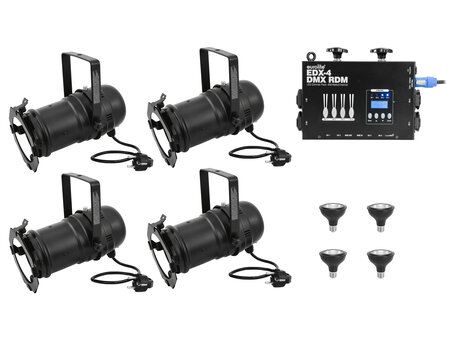

EUROLITE PAR-30 Spot black
PAR-30 housing with E-27 socket (with plug + cable)
- 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
- Strong clamps with extension springs for safe hold and for quick opening of the rear housing cover
- Blackened tube for precise light output
- Suitable for different spot angles
- Small lighting-systems can also be realized with a small budget
- Control via plug and play
- With Mounting bracket
- For PAR 30
- For application areas such as: Advertisement/Shop window; Decoration; Clubs/dancing school
Package contents
- 1 x spotlight, 1 x mounting bracket, 1 x filter frame, 1 x user manual
OMNILUX PAR-30 230V COB 12W E-27 LED 1800k-3000k dim2warm
PAR-30 LED lamp with modern dim-to-warm feature
- Dimming behavior comparable with incandescent and halogen lamps (dim-to-warm)
- Changes the light color from 3000 K (warm white) to 1800 K (extra warm white) when dimming
- Creates particularly cosy atmospheres
- Easy lamp replacement
- Energy-saving
- Dimmable
- Variable color temperature 1800 K - 3000 K
- Easy installation
- Very high color rendering index (CRI)
EUROLITE EDX-4 DMX RDM LED Dimmer Pack
4-channel dimmer for LED lights with 230 V operation
- Trailing edge dimmer with 4 channels
- Max. channel load 200 watts
- Independent DMX addressing per channel possible
- Dimmer or switch operation
- 4 channel faders for control on the device
- Note: Only suitable for LED - not for conventional light bulbs
- 16 integrated show programs
- Control via RDM; stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With rigging points
- LCD display
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Weight:
5,12 kg
Energy efficiency class (A - G):
F
EUROLITE PAR-30 Spot black
Power supply:
230 V AC, 50 Hz
Power consumption:
Max. 100 W
IP classification:
IP20
Protection class:
Protection class I
Suitable lamp:
Max. 230 V/100 W E27
Power connection:
Fixed power supply cord with safety plug
Cable construction:
3 x 0,75 mm² H05SS-F
Cable length:
Approx. 0,4 m
Base:
E27
Lamp type:
Selectable
Color generation:
Via color filter frame
Control:
Plug and play
Housing color:
Black
Attachment system:
Mounting bracket
Material:
Aluminum
Slot for spot length:
12,8 cm x 12,8 cm
Dimensions:
Length: 23,5 cm
Width: 14,5 cm
Height: 21 cm
Weight:
530 g
Mounting bracket
Diameter mounting holes:
2 x Ø10mm
Material:
Aluminum, 3 mm
Color:
Black
Filter frame
Shape:
Octagonal
Material:
Aluminum, 0,5 mm
Color:
Black
Dimensions:
Length: 12,6 cm
Width: 12,6 cm
Diameter: Ø 9,4 cm
Weight:
22 g
OMNILUX PAR-30 230V COB 12W E-27 LED 1800k-3000k dim2warm
Voltage (lamps):
230 V
Nominal wattage:
12 W
Base:
E27
Lamp type:
LED lamp
Lamp specification:
Dimmable
Beam angle:
24°
Color of light:
White
Color temperature:
1800K - 3000K adjustable
Setup:
Easy installation
Color rendering index (CRI):
96 Ra
Construction:
PAR-30
Operating temperature max.:
40° C
Operating temperature min.:
20° C
Lamp life:
15000 h
Luminous flux:
960 lm
Wavelength:
640 nm
Weight:
140 g
Photobiological safety:
Risk Group 1
Energy efficiency class (A - G):
F
EUROLITE EDX-4 DMX RDM LED Dimmer Pack
Power supply:
230 V AC, 50 Hz
Output power:
Max. 200 W per channal
Max. 800 W
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
4 x Safety contact (F), hinged lid mounting version
1 x P-Con (gray), mounting version Bypass
DMX channels:
1; 4; 6
DMX input:
3-pin XLR (M)
DMX output:
3-pin XLR (F)
Control:
RDM; stand-alone; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Control channels:
4
Flying points:
2 x M10 thread
Display type:
LCD display
Status LED:
Chanal level meter
Color:
Black
Dimensions:
Width: 21 cm
Depth: 29 cm
Height: 9 cm
Weight:
2,45 kg
