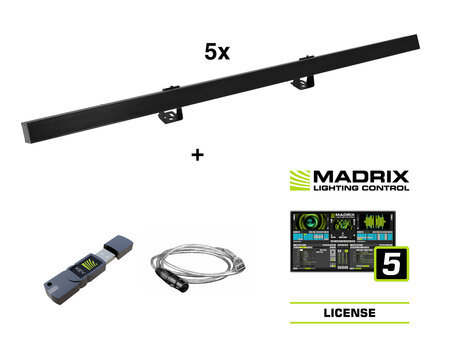

EUROLITE LED PR-100/32 Pixel DMX rail bk
DMX controlled pixel tube with RGB color mixing
- DMX and power terminals intelligently designed for easy wiring
- Front cover: black
- 96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
32 segments separate controlling - Color blend stepless; color change adjustable; colors preset; Dimmer electronic
- 12 integrated show programs
- Direct color selection for 17 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; Sound to light via Microphone
- With a beam angle of 120°
- With Mounting bracket
- 4 digit 7-segment LED display
- Preprogrammed in Light Captain
- Silent operation
- Mains input and output for power linking up to 8 units
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
MADRIX Software 5 License start
MADRIX 5 licence start
- Includes 1x MADRIX 5 License start
- Requires a valid, empty, and metallic MADRIX KEY
- Compatible with Win 7, Win 8, Win 10,
- Made in Germany
- Engineered in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
MADRIX USB ONE DMX512 USB interface
USB-DMX cable to send/receive DMX signals with MADRIX software
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX
- Built with NEUTRIK connector
- The device can be connected via USB to the PC in connection with MADRIX software
- Compatible with Win 7, Win 8, Win 10,
- Made in Germany
- Engineered in Germany
MADRIX KEY
MADRIX 5 KEY - without license
- Includes an empty MADRIX KEY
- Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
- The device can be connected via USB to the PC
- Made in Germany
Weight:
10,22 kg
EUROLITE LED PR-100/32 Pixel DMX rail bk
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
30 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x P-Con (gray), mounting version
Lamp type:
LED lamp
LED:
96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
3; 5; 8; 48; 96
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; DMX; Sound to light via Microphone
Preprogrammed in:
Light Captain
Beam angle:
120°
Beam angle (1/2 peak):
120°
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
Dimensions:
Length: 99,9 cm
Width: 5,95 cm
Height: 13,2 cm
Weight:
2,01 kg
Noise classification:
Class 0 (no noise at all)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
MADRIX Software 5 License start
Weight:
0 g
Operating system:
Win 7, Win 8, Win 10,
MADRIX USB ONE DMX512 USB interface
Power supply:
5 V DC 500 mA
Power connection:
Fixed power supply cord for USB A mains connection
DMX channels:
Input 512
Output 512
DMX output:
1 x 5-pin XLR (F)
Control:
DMX
USB port:
USB 2.0, Typ A
Use of brands:
Built with NEUTRIK connector
PC connect:
MADRIX software via USB
Weight:
100 g
Operating system:
Win 7, Win 8, Win 10,
MADRIX KEY
Power connection:
Mains input via USB A (M) connectable version
USB port:
Typ A
PC connect:
Via USB
Weight:
70 g
