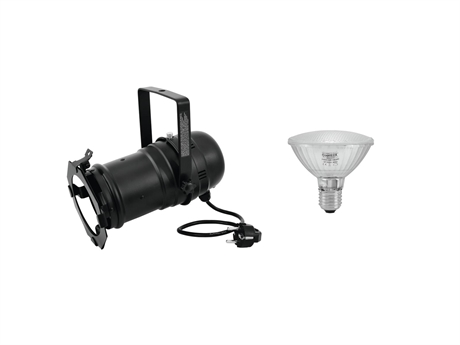

PAR-30 housing with E-27 socket including PAR-30 lamp with LED technology
EUROLITE PAR-30 Spot black
PAR-30 housing with E-27 socket (with plug + cable)
- 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
- Strong clamps with extension springs for safe hold and for quick opening of the rear housing cover
- Blackened tube for precise light output
- Suitable for different spot angles
- Small lighting-systems can also be realized with a small budget
- Control via plug and play
- With Mounting bracket
- For PAR 30
- For application areas such as: Advertisement/Shop window; Decoration; Clubs/dancing school
Package contents
- 1 x spotlight, 1 x mounting bracket, 1 x filter frame, 1 x user manual
OMNILUX PAR-30 230V SMD 11W E-27 LED 6500K
PAR-30 LED lamp
- Easy lamp replacement
- Energy-saving
- Hot restrike
- Easy installation
Package contents
Weight:
720 g
Energy efficiency class (A - G):
F
EUROLITE PAR-30 Spot black
Power supply:
230 V AC, 50 Hz
Power consumption:
Max. 100 W
IP classification:
IP20
Protection class:
Protection class I
Suitable lamp:
Max. 230 V/100 W E27
Power connection:
Fixed power supply cord with safety plug
Cable construction:
3 x 0,75 mm² H05SS-F
Cable length:
Approx. 0,4 m
Base:
E27
Lamp type:
Selectable
Color generation:
Via color filter frame
Control:
Plug and play
Housing color:
Black
Attachment system:
Mounting bracket
Material:
Aluminum
Slot for spot length:
12,8 cm x 12,8 cm
Dimensions:
Length: 23,5 cm
Width: 14,5 cm
Height: 21 cm
Weight:
530 g
Mounting bracket
Diameter mounting holes:
2 x Ø10mm
Material:
Aluminum, 3 mm
Color:
Black
Filter frame
Shape:
Octagonal
Material:
Aluminum, 0,5 mm
Color:
Black
Dimensions:
Length: 12,6 cm
Width: 12,6 cm
Diameter: Ø 9,4 cm
Weight:
22 g
OMNILUX PAR-30 230V SMD 11W E-27 LED 6500K
Operating voltage:
230 V, 220 - 240 V
Nominal wattage:
10 W
Base:
E27
Lamp type:
LED lamp; non-clear lamp; high voltage lamp; sealed beam lamp
Lamp specification:
Hot restrike
Beam angle:
50°
Color of light:
White
Color temperature:
6500K
Setup:
Easy installation
Lead time:
0,2 s
Construction:
PAR-30
Operating temperature max.:
40° C
Operating temperature min.:
20° C
Burning position:
S180 (universal)
Lamp life:
20000 h
Luminous flux:
850 lm
Wavelength:
600 nm
Dimensions (LxD):
92x95 mm
Weight:
190 g
Energy efficiency class (A - G):
F
