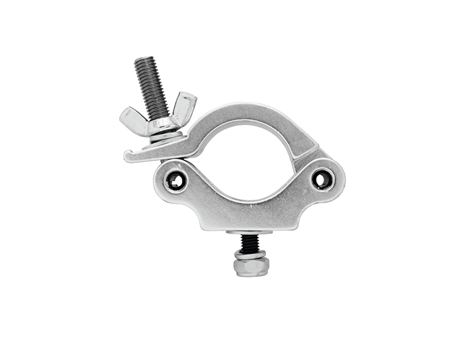

Mounting coupler for 50 mm tube, maximum load WLL 200 kg
- Hook for installing projectors, lighting effects etc. via a truss system
- With countersunk mounting screw M10x35 mm
- Mounting of a half cone M10 is possible since the mounting screw can be turned as required (countersunk head)
Maximum load BGV C1 (8-fold):
100 kg
Max. load WLL (4-fold):
200 kg
Tube diameter sector:
44 - 50 mm
Material:
Aluminum
Color:
Silver
Mounting screw:
M10
Dimensions:
Length: 10 cm
Width: 3 cm
Depth: 11,50 cm
Weight:
350 g
