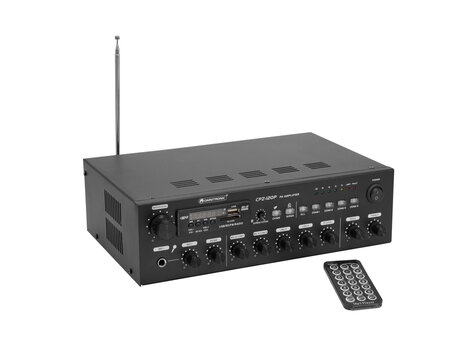

4-zone-PA mixing amplifier with audio player, IR remote control and Bluetooth, switchable zones, 120 W RMS
- 4 PA zone outputs, independently switchable on the front panel
- Output for low-impedance speakers (4-16 ohms)
- SD card slot and USB port
- FM tuner with auto scan
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power, priority circuit and echo effect
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Siren and chime, adjustable
- Treble and bass and master controls for the output signal
- 5-digit LED level meter
- Mains operation and 24 V emergency power operation
- The device is cooled by cooling fan
- Control via Bluetooth; IR remote control
- 2 U
- Desktop console housing
Package contents
- 1 x amplifier, 1 x remote control, 1 x antenna, 1 x battery, 1 x power cord, 1 x user manual, 1 x declaration of conformity
Power supply:
100-240 V AC, 50/60 Hz
Or
24 V
Power consumption:
240 W
Protection class:
Protection class I
Output power:
120 W RMS
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack (not included)
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Cooling:
Cooling fan
Impedance:
Public address systems 70V; Public address systems 100V; 4-16 ohms
Control:
Bluetooth; IR remote control
Bluetooth device name:
OMNITRONIC
Audio player:
USB + SD + Bluetooth + FM Radio,
Zone output:
4 switchable zones
Circuitry:
Class D
Control elements:
Power switch
Controls:
Overload; short-circuit; limiter; overheat
Connections:
Input: Microphone via 1 x 3-pin XLR
Input: mic/line via 2 x 6.3 mm jack socket (stereo) mounting version
Input: line via 2 x stereo RCA
Output: line via 1 x stereo RCA 0,774 V
Output: speaker via screw terminal
Equalizer:
Master: 1 x 2-band tone control
Music format:
MP3
Housing design:
2 U
Desktop console housing
Dimensions:
Width: 30,3 cm
Depth: 22 cm
Height: 9,1 cm
Weight:
3,85 kg
