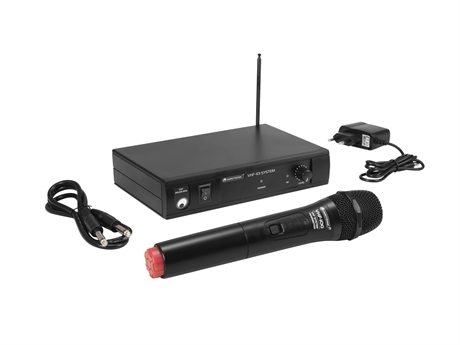

VHF wireless microphone system
- Receiver unit and hand-held microphone with PLL technology
- Operation with fixed VHF frequency
- Microphone with mute function and color indication
- Polar pattern: Cardioid
- License free in germany
- Operating range up to 30m with line-of-sight
Package contents
- 1 x receiver, 1 x microphone
Power supply:
100-240 V AC, 50/60 Hz
12 V DC
Power consumption:
Max. 5 W
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Capsule type:
Dynamic
Polar pattern:
Cardioid
Frequency range:
80 - 12000 Hz
Control elements:
Level control
Status LED:
Power, signal
Connections:
Output: Microphone via 1 x 6.3 mm plug (unbal.)
Output: Microphone via 1 x 3-pin XLR
Frequency band:
VHF
Carrier frequency:
215,850 MHz
RF power output:
10 mW
Range:
Range up to 30m with line-of-sight
Switch:
On/off switch; Mute control
Material:
Plastic
Weight:
600 g
Receiver
Weight:
300 g
Microphone
Battery:
2 x Mignon (AA) (not included)
Dimensions:
Length: 24 cm
Diameter: Ø 5 cm
Weight:
170 g
