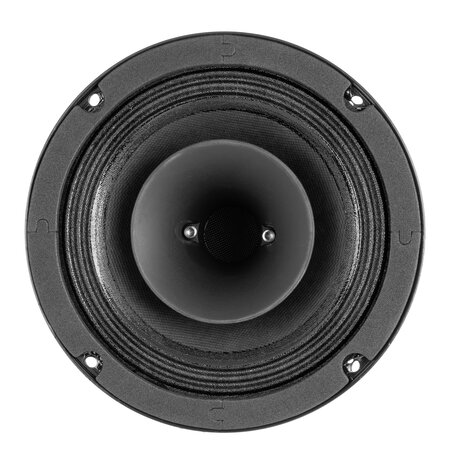

The CCD series is a line of hybrid speakers with a built-in compression horn driver, an innovative design that delivers amazing sound clarity. These high-powered pro audio speakers combine extreme midrange volume combined with a high-wattage compression driver, delivering a full frequency range with absolute precision.
Midrange Loudspeaker with compression horn driver
2" Compression CCAW Voice Coil
Resonance free die-cast aluminium basket
Wide frequency range
Optimized cooling system
Slim Design
Extreme Power
Brand Vonyx
Product colour Black
Output power: Max 600W
Output power: RMS 300W
Tweeter type High Compression Driver
Diameter tweeter 1"
Voice coil HF 1.4"
Diameter woofer 6.5"
Voice coil 2"
Magnet type Ferrite
Magnet weight 45 oz
Frequency response 90Hz - 20.000Hz
SPL @ 1W/1m 87dB / 100dB
Impedance High 8 Ohm / Low 4 Ohm
Mounting diameter 151mm
Mounting depth 110mm
Dimensions (L x W x H) Ø175 x 120mm
Weight (kg) 3.292
