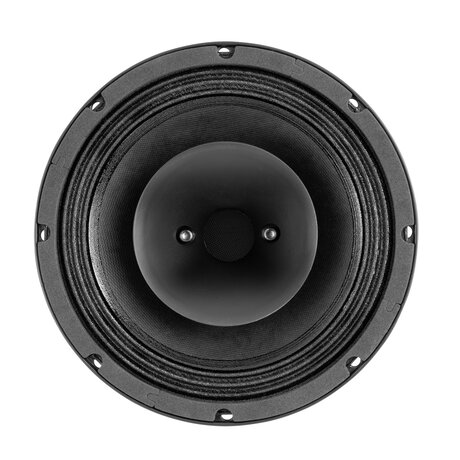

The CCD series is a line of hybrid speakers with a built-in compression horn driver, an innovative design that delivers amazing sound clarity. These high-powered pro audio speakers combine extreme midrange volume combined with a high-wattage compression driver, delivering a full frequency range with absolute precision.
Midrange Loudspeaker with compression horn driver
2.5" Compression CCAW Voice Coil
Resonance free die-cast aluminium basket
Wide frequency range
Optimized cooling system
Slim Design
Extreme Power
Brand Vonyx
Product colour Black
Output power: Max 1200W
Output power: RMS 600W
Tweeter type High Compression Driver
Diameter tweeter 1.2"
Voice coil HF 1.75"
Diameter woofer 8"
Voice coil 2.5"
Magnet type Ferrite
Magnet weight 52 oz
Frequency response 70Hz - 20.000Hz
SPL @ 1W/1m 93dB / 103dB
Impedance High 8 Ohm / Low 4 Ohm
Mounting diameter 186mm
Mounting depth 123mm
Dimensions (L x W x H) Ø210 x 133mm
Weight (kg) 4.51
