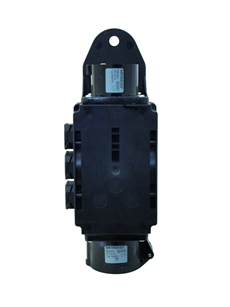

RIGPORT RPL-16 Power Distributor

Rigport CEE line

• CEE In + Out, 3 x Powercon
• Technical specifications: 2.5 mm², 3 x 16 A, 400 g
• For more robust ground applications
• Black CEE connectors for unobtrusive use (e.g. stage, active PA-system...)
• Powercon protected (IP42, closed)
• Processibility of existing cables
• Designed for use in flexible rig/theater/fair
• Extremely small - less than 50 mm so that it does not exceed the trusspipe
• Invisible use in theaters, moving trusses, fair ...
• Easy installation compared with conventional wiring
• Fast installation only by clipping to trusspipe
• Strain relief
• International use
• If an error occurs very quickly interchangeable
• A separate system for each application (1 phase, 3 phases 16 A or 40 A)
• Individual ports in the main line are easily replaceable, e.g. against ports within function as dimmers, switch, motor controllers, DMX splitters...
• Made in Europe
• Power out: 3 x; 1 x CEE 16A 5-pol (f) recessed mounting
• Power supply: Mains Input Socket (M)
