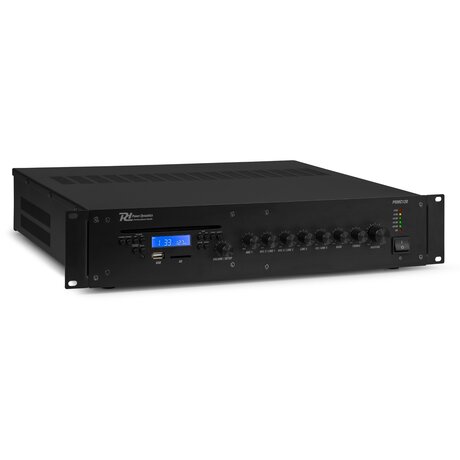

The PRC120 is a rack-mountable mixer-amplifier that can either be used as 100V amplifier or as a standard low-impedance amplifier. Features 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. It's equipped with a CD player, BT receiver and USB/SD ports for MP3 playback including a bright LCD display. The PRC120 is provided with switchable XLR inputs with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.
Mixer-Amplifier with 5 input channels
120W Class D power Section
Slot-in CD player
MP3 Player with USB/SD slot
Using BT wireless technology for audio streaming
LCD control panel with ID3 tag
2x Mic/line inputs 6.3mm and 2x RCA line input and 1x RCA line output
XLR Microphone input with switchable phantom power (24V) and VOX priority
100V or 8 Ohm speaker output
Zone outputs: Speaker Terminal (100V / 8Ohm / Com)
Bass and treble controls
19" Rack mountable (2U)
Emergency operation by 24V battery (not supplied)
Overload protected
Including remote control
Brand Power Dynamics
Product colour Black
Playback options BT streaming, CD, USB, SD
Output channels 1
Output power: RMS 120W
Impedance 8 Ohm, 100V
Frequency response 50Hz - 18.000Hz
Signal-to-noise ratio >75dB
THD <1%
Signal-to-noise ratio: Line >85dB
Signal-to-noise ratio: Mic >72dB
Input level: Line 150-470mV, 10 kOhm
Input level: Mic. 5-8mV, 600 Ohm
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 410 x 487 x 85mm
Weight (kg) 11.4
Included accessories Remote control (wireless), Mounting bracket, Power cable
