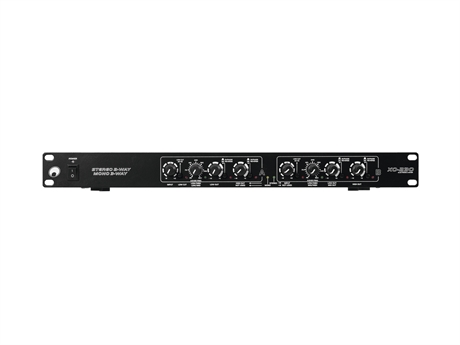

Active crossover, stereo 2-way and mono 3-way operation
- 2-way or 3-way stereo operation
- Variable 24 dB per octave Linkwitz-Riley filters
- Crossover frequencies continuously adjustable between 45 Hz and 9.6 kHz
- Low frequency summed (subwoofer) output
- Individual output level controls for each frequency range
- Butterworth low-cut filter (12 dB/octave 40 Hz) to protect subwoofers
- X10 range switch on both channels
- Phase reverse switch on all outputs
- LED indicators for all important functions for easy status identification
- Balanced XLR inputs and outputs
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x controller, 1 x user manual, 1 x power cord
Power supply:
230 V AC, 50 Hz
Power consumption:
8 W
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
S/N ratio:
>100 dB
THD:
80 dB
Control elements:
Mode switch (2-way,stereo/3-way,mono)
Connections:
Input: line via 2 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Crossover frequency:
45-9600 Hz, 24db/oct , Linkwitz-Riley
Max. level:
Input: +22 dBu
Output: +21 dBu
Housing design:
(19") 48.3 cm rack installation 1 U
Dimensions:
Width: 48,3 cm
Depth: 15,2 cm
Height: 4,45 cm
Weight:
1,87 kg
