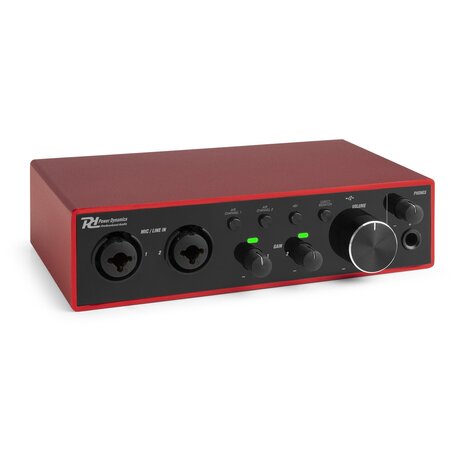

With the PDX-22 you have an audio interface that allows you to record the sound of multiple instruments simultaneously. You can create clear high quality microphone recordings thanks to the 2 switchable preamps. You can record sound at high levels without losing quality, as the audio interface provides ample headroom. Using the balanced line inputs, you can capture the sound of synthesizers and drum machines. You can choose to connect 2 mono instruments or 1 stereo instrument to the PDX22.
USB audio interface microphone preamp
2 Microphone preamps
Hi-res 24-bit/192 kHz converters
Headphone output with independent level control
Direct Monitor unlocks monitoring (stereo/mono) with one click
+48 V phantom power
Switchable Air function
2x Combi Mic/instrument/line inputs: XLR/6.3mm jack
2 Line outputs: 6.3 mm jack balanced
Stereo headphone output: 6.3 mm jack
USB-C connectivity, compatible with MacOS, Windows and iPadOS
Incl. USB cable (USB-C to USB-A)
Brand Power Dynamics
Frequency response 20Hz - 20.000Hz
Input connections 6.3mm Jack, XLR (3-pin)
Output connections 6.3mm Jack
Power supply 5V via USB
Dimensions (L x W x H) 175 x 99 x 48mm
Weight (kg) 0.47
