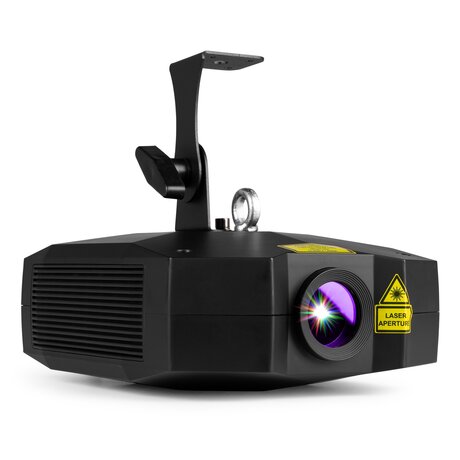

The Leda is an advanced DMX animation laser equipped with more than 100 integrated graphics, powerful beams and vivid animation effects. With its advanced RGB mixing capabilities, seven colours can be created at full intensity. The rear panel is equipped with a 3-pin DMX input and output for seamless integration of all types of DMX control units. When controlled via a DMX controller, the Leda offers the flexibility to choose between 7 or 16 DMX channels. Additionally, it can be set to a sound-activated mode thanks to its built-in microphone, allowing the laser to effortlessly synchronise with music.
Powerful 1.2W TTL animation laser
Red (300mW), Green (300mW) and Blue (600mW) laser modules
15K high speed optical scanner system
DMX and Stand-alone mode
Master/slave function
Sound activated with adjustable sensitivity
Auto mode
Preprogrammed patterns and animations
DMX in/output via 3-pin XLR
Control panel with LED display
Brand beamZ
Product colour Black
Input connections XLR (3-pin)
Output connections XLR (3-pin)
DMX channels 7, 16
DMX connection 3-pin XLR
ILDA No ILDA
Laser Red 300mW @ 638nm
Laser Green 300mW @ 520nm
Laser Blue 600mW @ 445nm
Scanner system 15kpps @ 8°
Guaranteed output 1000mW
Maximum output 1200mW
Power consumption 0.302 - 0.139A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 211 x 268 x 101mm
Weight (kg) 2.2
