Ljusbord för teater och scen med 512 DMX-kanaler, separata dimmerreglar för scener och chase-program.

St:

Artikelnummer:70064555

Enhet:st.

Lagerstatus:I lager (lev. ca. 4-8 vardagar)

Beskrivning

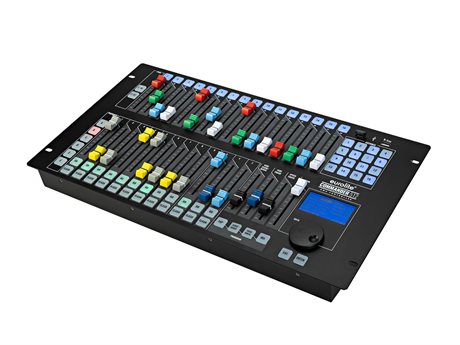

Modern theater lighting console for 512 DMX channels, separate dimmer faders for scenes & chases

Designed for moving lights, lighting effects, LED spot lights and dimmers
Master dimming, fade time and run time easily adjustable
Different colored fader caps for customized designs included
Good visual control of scenes and chasers through intelligent status LEDs
Manual, time-controlled or sound-controlled chase running mode
Several chases and scenes can be run simultaneously
Sound control via audio signal or TAP button
USB port for storing program data
(19") 48.3 cm rack installation 6 U
57 scenes/chases 767 cues distributed over 9 page/s
Control via sound to light via microphone; sound to light via 6.3 mm jack socket (stereo) mounting version
LCD display
The device can be connected via USB to the PC
firmware can be updated
Desktop console housing
For application areas such as: Clubs/dancing school; wedding/gala/events; Trade fair and shop fitting; stage; theater; restaurants, bars and hotels; rental

Package contents

TECHNICAL SPECIFICATIONS

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	2 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Programs:	57 scenes/chases 767 cues distributed over 9 page/s
DMX channels:	512
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Control:	Sound to light via microphone; sound to light via 6.3 mm jack socket (stereo) mounting version
Housing color:	Black
Display type:	LCD display
Available storage media:	USB devices (FAT 32)
USB port:	2 x type A
PC connect:	Via USB, firmware can be updated
Housing design:	Desktop console housing (19") 48.3 cm rack installation 6 U
Dimensions:	Length: 48.3 cm Width: 26.6 cm Height: 8 cm
Weight:	4.70 kg
