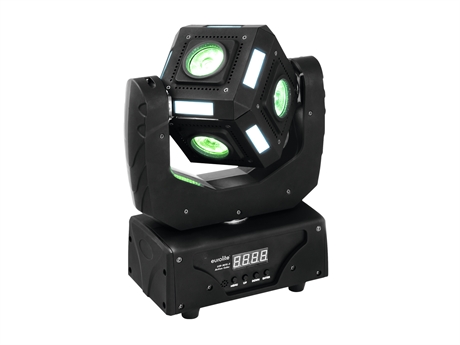

Moving Effect with 6 light beams and Mood Light Strips on the edges
- Beam effect with 6 lenses and 10 W quadcolor LEDs in RGBW colors and 12 LED mood light strips with 4 RGB SMD LEDs each
- Compact lightweight
- With infinity function for unlimited TILT movement
- Positioning within 630° PAN and 200° TILT
- PAN-angle switchable between 630° and 540°
- 14 or 16 DMX channels selectable
- Functions: Colored beams, LED mood light strips, auto mode, sound control, color presets, color change, Master/Slave function, built-in programs, stepless RGBW color mixture
- Masterdimmer
- Strobe effect with 1-25 flashes per second and with adjustable speed
- Random strobe effect
- Automatic position correction
- Exact positioning via 16 bit PAN/TILT movement resolution
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Sound-controlled via built-in microphone, sensitivity adjustable
- Addressing via control panel with 4-digit LED display
- Switch-mode power supply for operation between 100 and 240 volts
- Ready for connection with power cord and safety plug
- DMX512 control via every standard DMX controller
- Effect: Multi beam effect
- Projection: flickerfree
- Power supply: Mains Input Socket (M) fehlt provided
- Power out: 1 x
- Control: DMX; Stand-alone
- LED: 48 x High power standard 10 W 4in1 QCL RGBW Homogenous colormix; 6 x SMD 3in1 TCL RGB Homogenous colormix
Power supply:
100-240 V AC, 50/60 Hz
DMX channels:
14/16
DMX connection:
3-pin XLR
Sound-control:
via built-in microphone
Flash-rate:
25 Hz
LED number:
6 x QCL + 48 x SMD
LED type:
10 W QCL, RGBW + RGB SMD
Maximum PAN-movement:
630°
Maximum TILT-movement:
unlimited
Dimensions (L x W x H):
250 x 180 x 350 mm
Lamp type:
LED lamp
Weight:
5 kg
IP classification:
IP20
Power consumption:
75 W
Beam angle:
9°
Height:
35 cm
Depth:
18 cm
Width:
25 cm
Max. PAN movement:
Positioning 540° Positioning switchable to 630° Pan tilt feedback
Max. TILT movement:
Positioning 200° plus infinity Pan tilt feedback
DMX channels:
14; 16
Ecodesign regulation:
Yes
Special product:
Not designed for household room illumination
Purpose:
Show effect lighting
