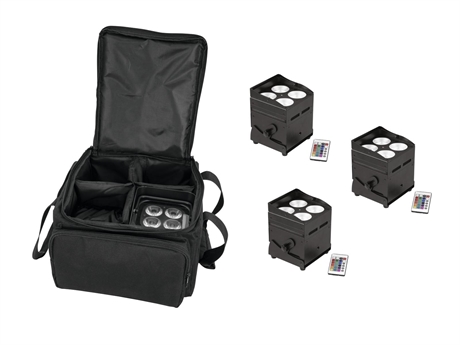

Battery-powered LED uplight with QuickDMX wireless receiver
EUROLITE AKKU UP-4 QCL Spot QuickDMX
Bright Uplight with 4 x 8 W 4in1 LED and QuickDMX transceiver
- Integrated QuickDMX transceiver for wireless DMX control
- Battery operation up to 9,5h depending on program used
- 4 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; QuickDMX; IR remote control; Sound to light via Microphone
- Flicker-free
- With a beam angle of 22°
- For application areas such as: Small lender; Wedding/gala/events
- Dimmer speed (step response) adjustable; Dimmer electronic; color blend stepless; color change adjustable
- Strobe effect
- Preprogrammed in Light´J; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
- Mains input and output for power linking up to 8 units
- Silent operation
- Integrated automatic charging of the battery and status indicator
- With bracket for floor use
- Cordless, flexible and versatile
Package contents
- 1 x spotlight, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x battery
EUROLITE SB-4 Soft Bag L
Black soft bag for up to 4 devices, 320 x 320 x 200 mm
- Practical transport bag offers enough space for several lighting effects and accessories
- With Dividers
- With 2 Outside pockets
- With 4 Device compartments
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding
cover with foam padding - 2 carrying straps
Package contents
Weight:
14,88 kg
EUROLITE AKKU UP-4 QCL Spot QuickDMX
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
50 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Battery/battery pack
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable length:
Approx. 1 m
Power output:
1 x P-Con (gray), mounting version
Battery pack type:
1 x lithium ion 14,8 V, 7800 mAh, 115,44 Wh
Battery pack:
Battery operation up to 9,5h depending on program used
Recharging time 3h
Lamp type:
LED lamp
LED:
4 x 8 W high-power 4in1 QCL RGBW (homogenous color mix)
DMX channels:
3; 4; 6; 8; 10
DMX input:
1 x 3-pin XLR (M) mounting version IP
DMX output:
1 x 3-pin XLR (F) mounting version IP
Cooling:
Passive convection cooling
Control:
DMX; stand-alone; QuickDMX; IR remote control; Sound to light via Microphone
Preprogrammed in:
Light´J; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain
Beam angle:
22°
Beam angle (1/2 peak):
22°
Beam angle (1/10 peak):
32°
Housing color:
Black
Attachment system:
Bracket for floor use
Carrier frequency:
2,4 GHz
Dimensions:
Width: 16,7 cm
Depth: 13,8 cm
Height: 18,8 cm
Weight:
3,59 kg
Noise classification:
Class 0 (no noise at all)
Remote control
Battery:
1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
EUROLITE SB-4 Soft Bag L
Maximum load:
25 kg
Carrying strap:
2 pc/pcs
Material:
Nylon
Color:
Black, water repellent
Compartment dimensions:
15 cm x 15 cm x 20 cm
Inside dimensions:
31 cm x 34 cm x 20 cm
Dimensions:
Width: 32 cm
Depth: 41 cm
Height: 20 cm
Weight:
520 g
