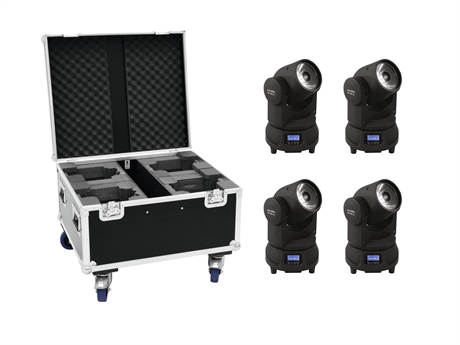

4x 60 W beam, compact, narrow angle, beautiful RGBW colors including PRO flightcase
- Positioning within PAN and TILT
EUROLITE LED TMH-X1 Moving Head Beam
60 W beam, compact, narrow angle, beautiful RGBW colors
- Compact lightweight
- 1 powerful LED 60 W COB (chip-on-board) 4in1 QCL RGBW
- Positioning within 540° PAN and 220° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Color selection; color blend stepless; Dimmer electronic
- Beam effect; Strobe effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via DMX; stand-alone; Sound to light via Microphone
- Flicker-free
- With a beam angle of 3°
- OSRAM bulb included
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- Mains input and output for power linking up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x xLR cable
ROADINGER Flightcase 4x LED TMH-X1 Moving-Head Beam with wheels
PRO flightcase for 4 x TMH-X1
- With accessory compartment
- With 4 Device compartments
- High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
- Interior with foam padding
- Aluminum profile frames 25mm with rounded edges
- 4 hinged, chromium plated case handles
- 1 chrome tip-over lock
- 2 high-quality butterfly locks
- 4 castors with 2 locking brakes
- 4 built-in stacking trays in the cover
- Branded hardware
- Made in Europe
- For further information about this product, please refer to the Data Sheet under "Downloads"
Weight:
39,78 kg
EUROLITE LED TMH-X1 Moving Head Beam
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
90 W
IP classification:
IP20
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Lamp type:
LED lamp
LED:
1 x 60 W COB (chip-on-board) 4in1 QCL RGBW
Max. TILT movement:
220° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:
540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:
0 - 10 Hz
DMX channels:
14
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
DMX; stand-alone; Sound to light via Microphone
Preprogrammed in:
Light´J; LED PC-Control 512; Light Captain
Beam angle:
3°
Beam angle (1/2 peak):
3°
Beam angle (1/10 peak):
7°
Illuminance in Lux (lx):
Red (R) 3m: 3251 lx, 6m: 712 lx
Green (G) 3m: 4684 lx, 6m: 1125 lx
Blue (B) 3m: 819 lx, 6m: 220 lx
Cold white (CW) 3m: 7909 lx, 6m: 1899 lx
All 3m: 15489 lx, 6m: 3655 lx
Housing color:
Black
Use of brands:
OSRAM bulb included
Dimensions:
Width: 20,7 cm
Depth: 19,6 cm
Height: 31,3 cm
Weight:
4,29 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
ROADINGER Flightcase 4x LED TMH-X1 Moving-Head Beam with wheels
Maximum load:
100 kg
Aluminum profile frames:
25 mm
Case handle:
4 pc/pcs
Stop hinge:
1 pc/pcs
Lock:
Butterfly lock: 2 pc/pcs
Transport aid:
4 x castors with 2 locking brakes
4 x built-in stacking trays in the cover
Use of brands:
Branded hardware
Material:
Birch multiplex, 7 mm
Color:
Dark brown, laminated
Accessory compartment:
10,5 cm x 60 cm x 27 cm
Compartment dimensions:
27 cm x 14 cm x 27 cm
Inside dimensions:
64,5 cm x 26 cm
Dimensions:
Width: 71 cm
Depth: 61 cm
Height: 53 cm
Weight:
21,90 kg
