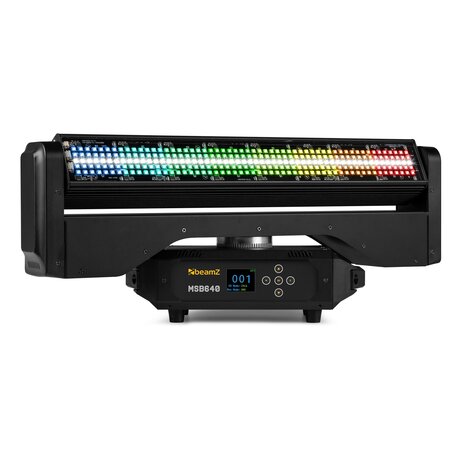

The beamZ MSB640 is an advanced double-sided moving head bar designed for versatile and powerful lighting effects. An upgrade from single-sided models, this fixture offers 720-degree pan and infinite tilt rotation, enabling dynamic and fluid movements. One side is equipped with 6 high power 40W RGBW LEDs with pixel control for a powerful wash-zoom effect, while the other side features 224 RGB LEDs in 16 sections and 56 white LEDs in 8 sections for intense strobe effects. The MSB640 is a multipurpose stage light, ideal for concerts, clubs and all other possible productions.
Double-Sided Moving Bar
Zoom Wash Side Light Source: 6x 40W 4-in-1 RGBW LEDs
Strobe Side Light Source: 224x RGB LEDs + 56x White LEDs
DMX and Stand-alone mode
Master/slave function
Sound mode with adjustable sensitivity
Auto mode with adjustable speed
Pre-programmed shows
720° pan and infinite tilt movement
Control panel with LCD display
DMX in/output via 3/5-pin
RDM Function
Efficient low noise fan cooling system
P-Con Power Connector in/output
Brand beamZ
Product colour Black
Light source 3-in-1 LED, 4-in-1 LED
Colours Red, Green, Blue, White
LED power 40W
Quantity of LEDs 6
Quantity of strobe LEDs 56
Quantity of backlight LEDs 224
Beam angle 65°
Illuminance 2.077 lx @ 1m
Flash rate per second 1 - 22Hz
Modes Automatic programs, DMX, Manual, Master/Slave
Sound to light mode Yes
RDM Yes
DMX channels 16, 29, 86
DMX connection 3-pin XLR, 5-pin XLR
IP rating IP20
Cooling Temperature controlled fan
Display LCD
Power plug P-Con
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 555 x 169 x 225mm
Weight (kg) 6.49
Included accessories Mounting bracket, Power cable
