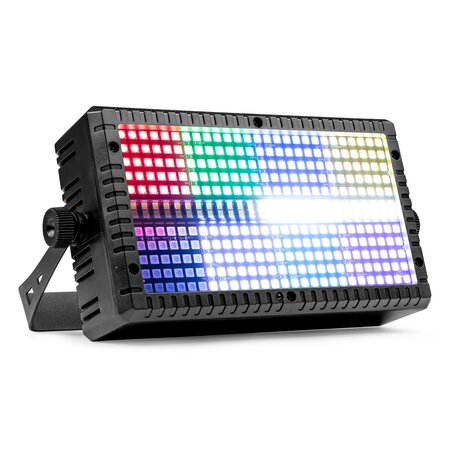

The BS336 is a powerful multi-use fixture and is specially designed to be used as a strobe, blinder or wash, thanks to the 336 SMD LEDs. The LED panel is divided in different sections and can flash in any colour you desire thanks to its RGB mixing system. This fixture is also equipped with a strip of 56 white SMD LEDs in the centre of the fixture, controllable in different sections to create the traditional look of a strobe. The BS336 makes it possible to create unique colourful effects and control is easy via DMX or in stand-alone mode with automatic function. Suitable for all kind of shows and events.
Stroboscope, Blinder and Wash fixture
280x RGB SMD LEDs
56x White SMD LEDs
RGB + White colour mixing
Controllable in 12 segments (8 RGB and 4 White LED zones)
DMX512, stand alone and Master/slave Mode
Automatic programs and Pre-programmed shows
Adjustable speed 1-15
Fan cooled ABS housing
Various dimmer curves adjustable
IEC Power input
Wireless remote control
Brand beamZ
Product colour Black
Light source Single colour LED, 3-in-1 LED
Colours Red, Green, Blue, White
Quantity of LEDs 336
Quantity of strobe LEDs 56
Beam angle 60°
Field angle 112°
Illuminance 2.126 lx @ 0.5m
IP rating IP20
DMX channels 4, 6, 12, 24, 30
DMX connection 3-pin XLR
Flash rate per second 1 - 20Hz
Display LED
Modes Automatic programs, DMX, Master/Slave
Power consumption 0.425 - 0.262A
Power supply 100-240VAC 50/60Hz
Included accessories Remote control (wireless), Mounting bracket
Dimensions (L x W x H) 265 x 160 x 65mm
Weight (kg) 0.95
