The Phantom 750 is a 750mW RGB laser with analogue modulation. Analogue modulation gives you the possibility to adjust the power of the laser beam (dimming). Enabling you to scan into the public or use advanced projection zones in your laser software.The Phantom series are completely equipped with diodes. The green 520nm diodes are integrated into the laser array. The advantages of a diode laser are More stability, brighter output, better blanking, better reliability especially over time.The laser can be controlled over ILDA and DMX or run stand-alone in auto or sound activated mode. There are many preset patterns available to pick from.
- Powerful laser completely equipped with diodes
- Guaranteed 600mW output
- Analogue RGB colour modulation
- 30K high speed optical scanner system
- X- and Y-Size inverter
- DMX and Stand-alone mode
- 12 DMX channels
- Master/slave function
- Sound activated with adjustable sensitivity
- Auto mode with adjustable speed
- Pre programmed shows

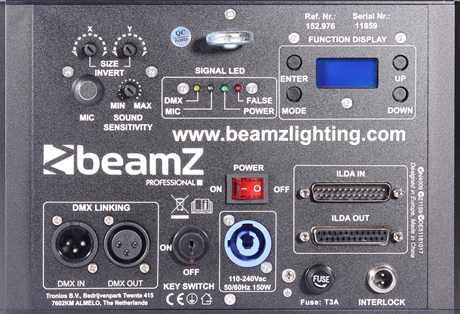

- DMX in/output via 3-pin XLR
- Control panel with LED display
- Powerconnector input
- DMX channels: 12
- DMX connector: 3-pin XLR
- ILDA Connector: DB25
- Laser Red: 150mW @ 637nm
- Laser Green: 100mW @ 520nm
- Laser Blue: 500mW @ 447nm
- Scanner system: 30kpps @ 8°
- Maximum scanner angle: 60 degrees
- Guaranteed output (99mW): 600mW
- Maximum output (99mW): 750mW
- Power consumption: 150W
- Power supply: 100-240VAC 50/60Hz
- Dimensions (L x W x H): 250 x 235 x 172mm
- Weight: 5.6000
