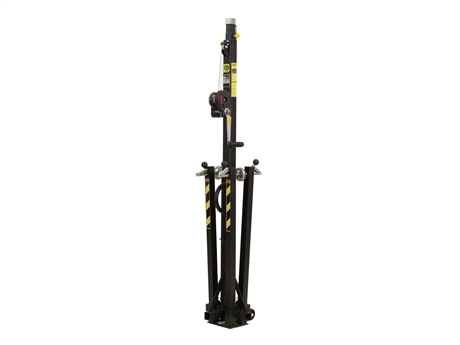

High-quality truss lift for loads up to 120 kg, made in EU
- Three-part telescopic ground support
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted
- AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Adjustable height
- Made in Europe
- With BGV-C1 test certificate
Maximum carrying capacity:
120 kg
Minimum load:
25 kg
Nominal tensile strenght of rope:
1770 N/mm²
Height:
Maximum: 500 cm above 3 sections
Minimum: 190 cm
Attachment system:
Ø 35mm
Steel rope:
Ø 4 mm
Type (general stands):
Truss lifter
Material:
Steel (powder-coated)
Transport dimensions:
38 cm x 38 cm x 1,9 m
Base area:
Ø 2,06 m
Weight:
33,50 kg
